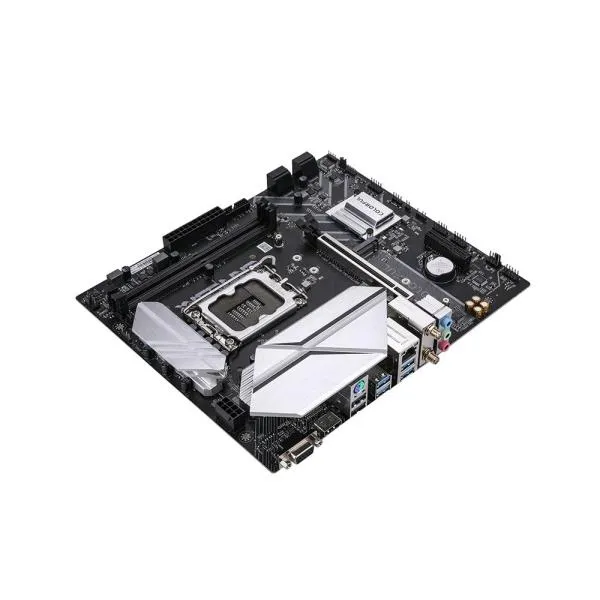

Mainboard Colorful BATTLE-AX B760M-G WIFI V20

Mã SP: SKU-49257 | 0 lượt xem | Còn hàng

Thông số sản phẩm

Chipset Intel B760 - Socket LGA 1700, CPU hỗ trợ: Intel 14th, 13th, and 12th
Khe Ram : 2 khe cắm Ram hỗ trợ tối đa : 64GB Tốc độ Bus : 4266(OC)
Cổng xuất hình : 1 x HDMI 2.1 , 1 x VGA
Kết nối mạng lan: RTL8125BG 2.5Gbit, AX101 WiFi 6, Bluetooth 5.2
Khe cắm : 2 x M.2, 4 x SATA3 6.0 Gb/s
Giao Tiếp VGA : 1 PCIe 4.0 x16 slot ,1 PCIe 3.0 x4 slot
Kích thước : Micro ATX (24.4 cm x 24.4 cm)

2.790.000₫

Giá đã bao gồm VAT Bảo hành 36 tháng Còn hàng

Yên Tâm Khi Mua Hàng

Đội ngũ kỹ thuật tư vấn chuyên sâu
Thanh toán thuận tiện
Sản phẩm 100% chính hãng
Bảo hành 1 đổi 1 tại nơi sử dụng
Giá cạnh tranh nhất thị trường

Liên Hệ Kinh Doanh Online

Kinh doanh 1: 0937.263.119
Kinh doanh 2: 0388.220.293
Kỹ thuật & Bảo hành: 0767.114.688
Hotline: 0913.115.333

Đánh giá và bình luận

0 lượt đánh giá

0 Bình luận

Thông số kỹ thuật

Mainboard Colorful BATTLE-AX B760M-G WIFI V20

Model	BATTLE-AX B760M-G WIFI V20
Product Color
Product Series	BATTLE-AX Series
Chipset	Intel B760
Processor	14th, 13th, and 12th generation Intel® compatible with LGA 1700 slot motherboard; CoRE ™、 Pentium® And Saiyang® Processor (* Please visit the official website of Colorful at www.colorful.cn to check the latest list of supported processors)
Memory	Provide 2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot) - Supports DDR4-4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Supports Intel® Extreme Memory Profile (XMP) Memory Technology - Supports Dual Channel Memory Technology (* Please visit the official website of Colorful at www.colorful.cn for the latest memory compatibility list)
SATA Ports	Supports 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices - M.2_1 slot: supports 2242/2260/2280 specification M.2 SSDs (PCIe 4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2280 specification M.2 SSDs (PCIe 4.0 x4, PCH channel) (* For the steps to create a RAID disk array, please refer to the official BIOS user guide of Colorful)
Board I/O	Rear I/O interfaces: -1 PS/2 interface -2 USB 2.0 interfaces -4 USB 3.2 Gen 1 Type-A interfaces -1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1 VGA interface -1 2.5G network interface -2 Wi Fi 6 antenna interfaces -3 audio interfaces (audio input/output/microphone) Onboard device interfaces: -1 CPU fan pin -2 system fan pins -1 water-cooled pump pin -1 USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1 USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -2 5V 3-pin ARGB pins -1 12V 4-pin RGB pin -1 front audio pin -1 front panel pin -1 speaker pin -1 serial port pin -1 clear CMOS jumper -1 BIOS burner pin -1 RGB light effect control jumper
Expansion Slots	1 PCIe 4.0 x16 slot 1 PCIe 3.0 x4 slot
BIOS	128M UEFI, supports multiple languages
Power Management	Support S3 S4， Network S5 wake-up, supports timed startup and incoming call startup
Hardware Monitor	CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and voltage monitoring of each group
LAN	RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2
Audio	Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels
Configuration	M-ATX board type. 245mm x 210mm.
